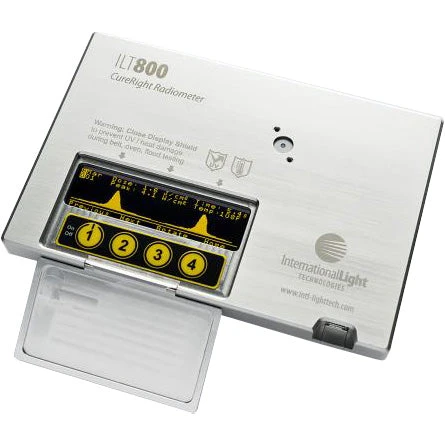

International Light ILT800-BAV UV/VIS CureRight Radiometer(International Light Ilt800bav Uvvis Cureright Radiometer)

The ILT800-BAV is a versatile light meter that can measure a wide range of UV sourcres ranging from a single UV LED chip to LED arrays, spot lights, curing lamps, conveyor/belt systems, chambers, fiber optic light guides, curing wands, and more.

The broadband UV filter passes light from (275 – 475 nm) can be used for both UV and VIS light measurements.

The ILT800-BAV measures both dose (mJ/cm²) and irradiance (mW/cm²) and includes profiling as a standard feature. The system has a user-friendly interface that places the input optic, device controls, and the readout display all on the same side, allowing simultaneous measuring and analyzing of measurement data.

Fiber optic attachments are available for 3, 5, and 8 mm diameter ferules to allow repeatable placement of spot curing wands and fiber optic light guides.

The ILT800-BAV CureRight Radiometer is part of the ILT800 CureRight series of radiometers, with models covering a full range from 200 nm to 500 nm.

Features

• Stores up to 1,000 measurements
• Measures mW/cm² to 40 W/cm²
• Simple CureRight PC interface to download, view and compare measurements
• 3000 samples per second
• Measure pulsed and continuous sources
• Linear response – no range selection required
• Graphical display of measurements (profiling) is standard
• Made in USA
• ISO17025 Accredited and NIST Traceable Calibration
