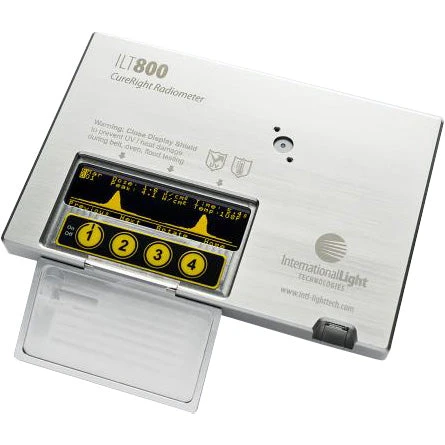

International Light ILT800-CUV Low Profile UV Radiometer(International Light Ilt800cuv Low Profile Uv Radiometer)

The ILT800-CUV is a versatile light meter that can measure a wide range of UV sources ranging from a single UVC, UVB or UVA LED chip to LED arrays, spot lights, lamps, conveyors, chambers, fiber optics and more. With calibration at 254 nm, the ILT800-UV is an excellent tool for testing UVC LED light sources. Custom calibration at other wavelengths is also available.

The ILT800-CUV measures both dose (mJ/cm²) and irradiance (mW/cm²) and includes profiling as a standard feature. The system has a user-friendly interface that places the input optic, device controls, and the readout display all on the same side, allowing simultaneous measuring and analyzing of measurement data.

Fiber optic attachments are available for 3, 5, and 8 mm diameter ferules to allow repeatable placement of spot curing wands and fiber optic light guides.

The ILT800-CUV Light Meter is part of the ILT800 CureRight series of radiometers, with models covering a full range from 200 nm to 500 nm.

Features

• Stores up to 1,000 measurements
• Measures mW/cm² to 40 W/cm²
• Simple CureRight PC interface to download, view and compare measurements
• 3000 samples per second
• Measure pulsed and continuous sources
• Linear response – no range selection required
• Graphical display of measurements (profiling) is standard
• Made in USA
• ISO/IEC 17025:2017 Accredited and NIST Traceable Calibration
