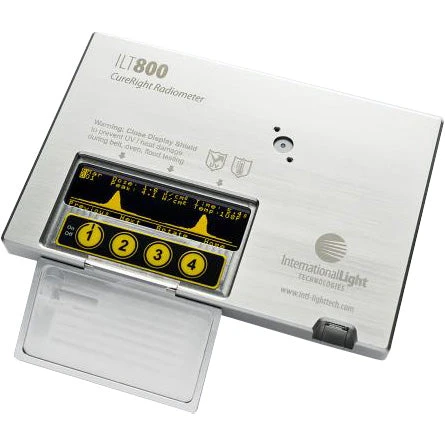

International Light ILT800-UVA CureRight Radiometer(International Light Ilt800uva Cureright Radiometer)

The ILT800-UVA is a versatile light meter that can measure a wide range of UVA sourcres ranging from a single UV LED chip to LED arrays, spot lights, curing lamps, conveyor/belt systems, chambers, fiber optic light guides, curing wands, and more.

The UVA filter passes light from 315 – 390 nm and is calibrated and peaks near 365 nm to match the sensitivity of many polymers and lamp emission curves.

The ILT800-UVA radiometer measures both dose (mJ/cm²) and irradiance (mW/cm²) and includes profiling as a standard feature. The system has a user-friendly interface that places the input optic, device controls, and the readout display all on the same side, allowing simultaneous measuring and analyzing of measurement data.

Fiber optic attachments are available for 3, 5, and 8 mm diameter ferules to allow repeatable placement of spot curing wands and fiber optic light guides. The ILT800-UVA CureRight Radiometer is part of the ILT800 CureRight series of radiometers, with models covering a full range from 200 nm to 500 nm.

Features

• Stores up to 1,000 measurements
• Measures mW/cm² to 40 W/cm²
• Simple CureRight PC interface to download, view and compare measurements
• 3000 samples per second
• Measure pulsed and continuous sources
• Linear response – no range selection required
• Graphical display of measurements (profiling) is standard
• Made in USA
• ISO/IEC 17025:2017 Accredited and NIST Traceable Calibration
