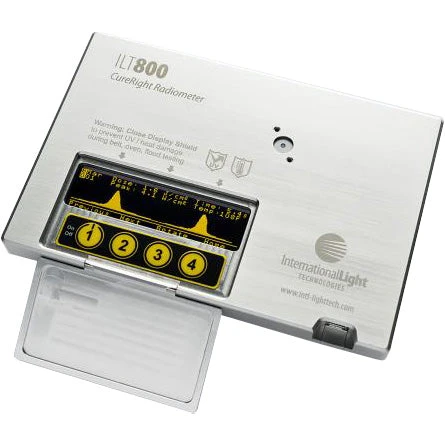

International Light ILT800-UVF UV LED Light Meter(International Light Ilt800uvf Uv Led Light Meter)

The ILT800-UVF is a versatile light meter that can measure a wide range of UV LEDs ranging from a single UV LED chip to LED arrays, spot lights, curing lamps, conveyor/belt systems, chambers, fiber optic light guides, curing wands, and more.

The UVF filter is designed for near flat (uniform) sensitivity for UVA LEDs in the range of 360 – 400 nm, while also covering a broader range from 300 to 450 nm, often required for traditional lamps.

The ILT800-UVF measures both dose (mJ/cm²) and irradiance (mW/cm²) and includes profiling as a standard feature. The system has a user-friendly interface that places the input optic, device controls, and the readout display all on the same side, allowing simultaneous measuring and analyzing of measurement data.

Fiber optic attachments are available for 3, 5, and 8 mm diameter ferules to allow repeatable placement of spot curing wands and fiber optic light guides.

The ILT800-UVF LED Measurement System is part of the ILT800 CureRight series of radiometers, with models covering a full range from 200 nm to 500 nm.

Features

• Stores up to 1,000 measurements
• Measures mW/cm² to 40 W/cm²
• Simple CureRight PC interface to download, view and compare measurements
• 3000 samples per second
• Measure pulsed and continuous sources
• Linear response – no range selection required
• Graphical display of measurements (profiling) is standard
• Made in USA
• ISO/IEC 17025:2017 Accredited and NIST Traceable Calibration
