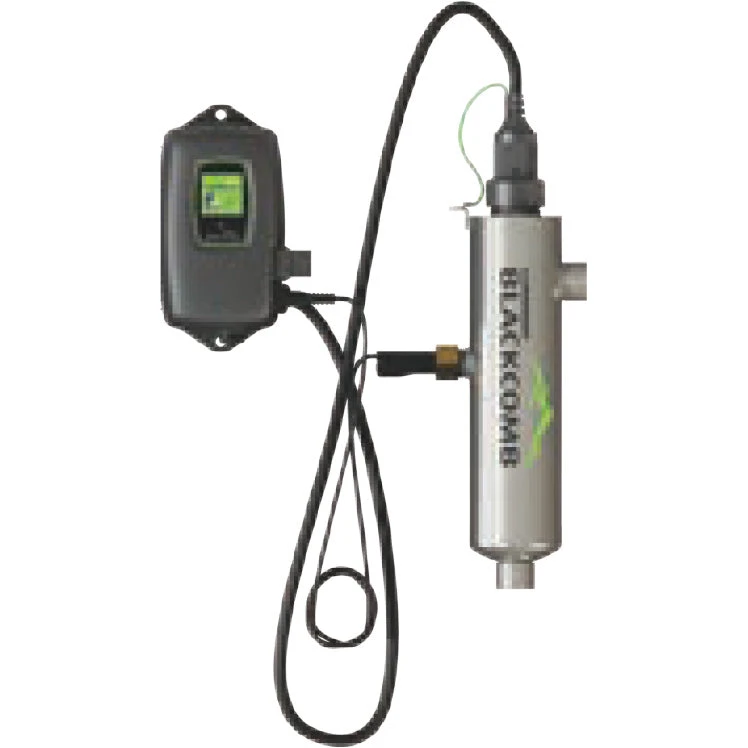

Luminor LB6-02-12V Blackcomb UVC Water Purifier – 2 GPM – 1/2″ FNPT Inlet/Outlet – 12 VDC(Luminor Lb602 12v Blackcomb Uvc Water Purifier 2gpm 12infnpt Inlet Outlet 12vdc)

For comprehensive whole home water UV treatment consider LUMINOR’s BLACKCOMB 6.1 line of products. Incorporating a true 254nm discrete UV monitor, this BLACKCOMB series offers continuous monitoring.

Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging. A color user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The system also incorporates QR codes to access lamp change information and videos via web access. The controller is a constant current electronic power source and is housed in a splash-proof case that comes standard with a “future-proof” expandability port for future upgrades or options.

Rugged 304 stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Low pressure (LP) coated UV lamps are used offering a consistent output over their 9,000 hour rated life and come paired with LUMINOR’s encrypted lamp key to protect against improper use.

Features

• Axial flow 304L stainless steel reactors for optimum fluid dynamics yet still allows for lamp/ sleeve service without the need to drain the water
• Low pressure (LP) coated UV lamps for consistent UV output throughout rated lamp life of 9,000 hours
• Splash-proof controller with constant current electronic ballast
• Color user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
• Sensor port for future upgradeability, comes with integral visual glow plug
• 254 nm Teflon based UV sensor with 4-20 mA output capabilities and solenoid ready capabilities (optional modules required)

All systems supplied with 6′ (1.82m) bare leads, AC adapter (wall wart) sold separately.
