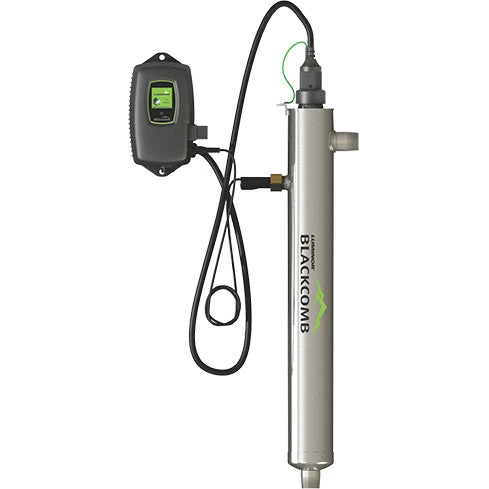

Luminor LB6-061 Blackcomb UVC Water Purifier – 6 GPM – 3/4″ MNPT Inlet/Outlet – IEP Port – System Diagnostics – UV Sensor(Luminor Lb6 061 Blackcomb Uvc Water Purifier 6gpm 34inmnpt Inlet Outlet Iep Port System Diagnostics Uv Sensor)

For comprehensive whole home water UV treatment consider LUMINOR’s BLACKCOMB 6.1 line of products. Incorporating a true 254nm discrete UV monitor, this BLACKCOMB series offers continuous monitoring.

Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging. A colour user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The system also incorporates QR codes to access lamp change information and videos via web access. The controller is a constant current electronic power source and is housed in a splash-proof case that comes standard with a “future-proof” expandability port for future upgrades or options.

Rugged 304 stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Low pressure (LP) coated UV lamps are used offering a consistent output over their 9,000 hour rated life.

Features

• Axial flow 304 stainless steel reactors for optimum fluid dynamics yet still allows for lamp/sleeve service without the need to drain the water
• Low pressure (LP) coated UV lamps for consistent UV output throughout rated lamp life of 9,000 hours
• Sensor port for future upgradeability, comes with integral visual glow plug
• Colour user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
• 254 nm Teflon based UV sensor with 4-20 mA output capabilities and solenoid ready capabilities (optional modules required)
