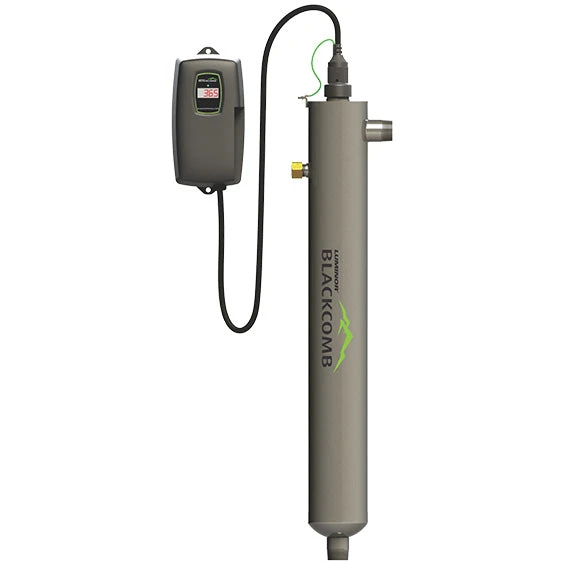

Luminor LBH4-401 Blackcomb-HO UVC Water Purifier – 40 GPM – 1 1/2″ MNPT Inlet/Outlet(Luminor Lbh4401 Blackcombho Uvc Water Purifier 40gpm 112inmnpt Inlet Outlet)

With system flow rates of 5, 10, 15, 25 and 40 gpm (15, 38, 53, 95 and 151 lpm), LUMINOR’s BLACKCOMB-HO 4.1 is classified as a “Residential Crossover” UV water treatment system. Not only would this product bode well in a large custom home or lodge, but it could also be used in many of those same applications as is outlined in the light commercial market segment.

Simplicity and ease of operation were the fundamental design criteria in the creation of BLACKCOMB-HO. Commercial grade axial flow 316L stainless steel reactors, designed and manufactured to ASME pressure vessel standards allow for easy sleeve change without the need to drain the reactor chamber as in competitive systems. A bayonet style UV lamp connector allows for easy lamp change without the need for additional tools.

For increased power density, BLACKCOMB-HO incorporates low pressure, high-output (LP-HO) coated UV lamps offering a consistent output over their 10,000 hour rated life. The BLACKCOMB controller houses a universal input, constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case.

Features

• NEW plastic mounting clamps (replaces gear clamp design)
• Axial flow 316L stainless steel reactors for optimum fluid dynamics yet still allows for lamp/sleeve service without the need to drain the water
• Designed and manufactured to ASME pressure vessel standards
• Low pressure high-output (LP-HO) coated UV lamps for increased power density and consistent UV output throughout the rated lamp life of 10,000 hours
• Sensor port for future upgradeability, comes with integral visual glow plug
• LED lamp countdown constant current electronic ballast (only on 4.1 series)
