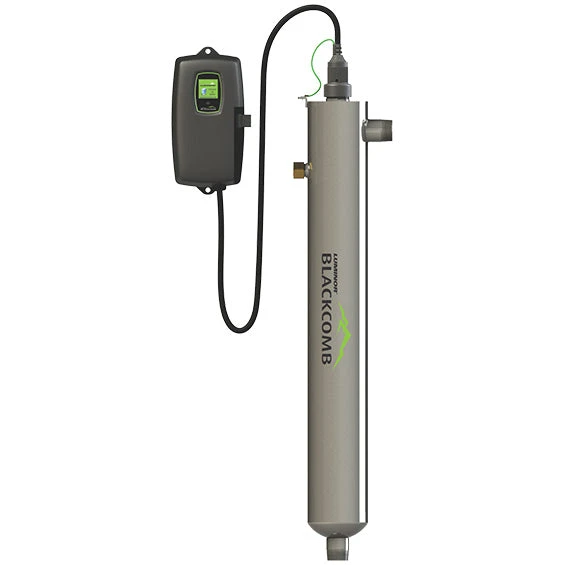

Luminor LBH5-151-HW Blackcomb-HO UVC Water Purifier – 10 GPM – 1″ MNPT Inlet/Outlet – Hot Water – IEP Port – System Diagnostics(Luminor Lbh5151hw Blackcombho Uvc Water Purifier 10gpm 1inmnpt Inletoutlet Hot Water Iepport Systemdiagnostics)

LUMINOR hot water systems are designed to be used for legionella control and disinfection of hot water recirculation loops.

Looking for a comprehensive UV system in higher flow rates, consider LUMINOR’s BLACKCOMB-HO 5.1 line of “Residential Crossover” UV water treatment systems.

The BLACKCOMB-HO 5.1 models can be installed in a large custom residence or a light commercial application such as a campground. BLACKCOMB-HO’s 5.1 series controller is a universal input, constant current electronic power source housed in a splash-proof case and comes standard with a “future-proof” expandability port for future upgrades or options.

A color user interface allows for easy visual identification of remaining lamp life and any error or fault codes. The system also incorporates QR codes to access lamp change information and videos via web access. Commercial grade axial flow 316L stainless steel, single-end reactors come with an integral port to allow for a future upgrade to a UV monitored system. If a monitor is not required, an integral visual glow plug is provided as an extra way to ensure that your UV lamp is illuminated. The single-end design allows for lamp change without the need to drain the reactor chamber. Low pressure, high-output (LP-HO) coated UV lamps offer a consistent output over their 10,000 hour rated life.

Features

• NEW plastic mounting clamps (replaces gear clamp design)
• Axial flow 316L stainless steel reactors for optimum fluid dynamics yet still allows for lamp/sleeve service without the need to drain the water
• Designed and manufactured to ASME pressure vessel standards
• Low pressure high-output (LP-HO) coated UV lamps for increased power density and consistent UV output throughout the rated lamp life of 10,000 hours
• Sensor port for future upgradeability, comes with integral visual glow plug
• LED lamp countdown constant current electronic ballast (only on 4.1 series)
• Color user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
