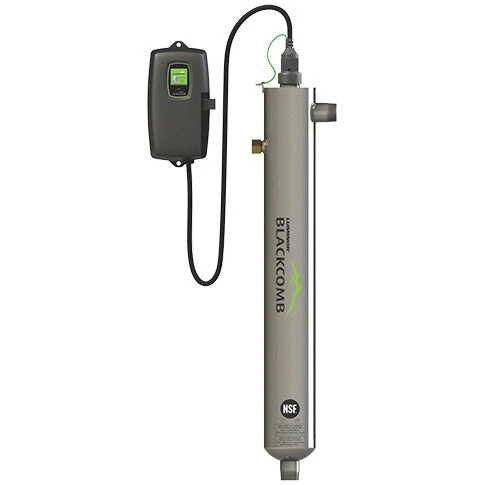

Luminor LBH5-251B Blackcomb-HO UVC Water Purifier – 22 GPM – 1″ MNPT Inlet/Outlet – NSF Class B(Luminor Lbh5251b Blackcomb Ho Uvc Water Purifier 22gpm 1inmnpt Inlet Outlet Nsfclassb)

Looking for a comprehensive UV water treatment system in higher flow rates? Consider LUMINOR’s NSF Class B BLACKCOMB-HO 5.1 line of “Residential Crossover” UV systems.

Equally comfortable installed in a large custom residence or a light commercial application such as a campground, this product offers many features.

BLACKCOMB-HO’s 5.1 series controller is a universal input, constant current electronic power source housed in a splash-proof case and comes standard with a “future-proof” expandability port for future upgrades or options.

A color user interface allows for easy visual identification of remaining lamp life and any error or fault codes. The UV treatment system also incorporates QR codes to access lamp change information and videos via web access. Our axial flow 316L stainless steel, single-end reactors come with an integral port to allow for a future upgrade to a UV monitored system. If a monitor is not required, an integral visual glow plug is provided as an extra way to ensure that your UV lamp is illuminated. The single-end design allows for lamp change without the need to drain the reactor chamber. Low pressure, high-output (LP-HO) coated UV lamps offer a consistent output over their 10,000 hour rated life.

Features

• Flow rates stated at NSF Class B dose of 16 mJ/cm2 at 70% UVT
• Color user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
• 304 stainless steel (BLACKCOMB) / 316L stainless (BLACKCOMB-HO), axial flow reactors allow for simple lamp/sleeve service
• All systems include integral flow restrictor
