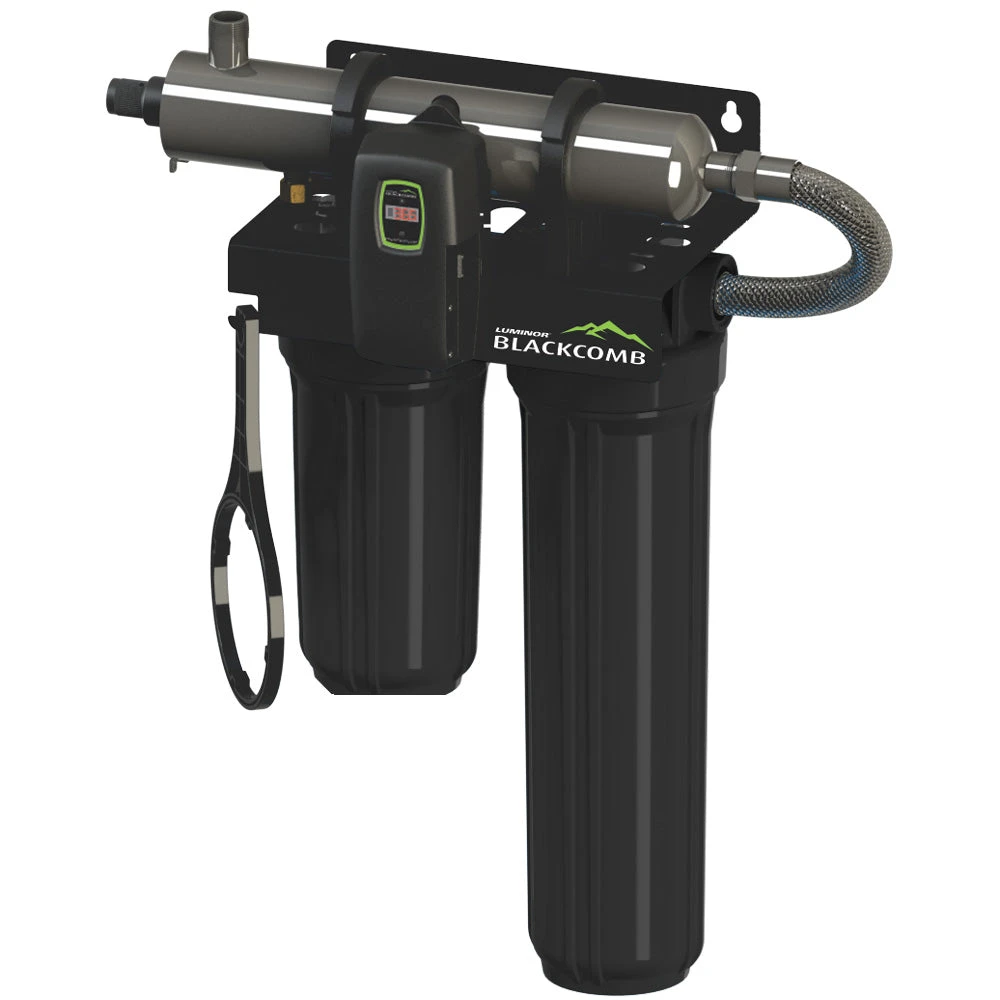

Luminor LBH5-Z12 Rack-Mount UV – 15 GPM – 1″ MNPT – 2 Filters – IEP Port – System Diagnostics(Luminor Lbh5 Z12 Rack Mount Uv 15gpm 1inmnpt 2filters Iep Port System Diagnostics)

LUMINOR’s line of rack-mounted UV filtration systems offer the convenience of an all-in-one package, making installation a simple “in ‘n’ out” connection. Designed to treat flow rates of 8 and 15 gpm, LUMINOR’s rack-mounted UV filtration systems provide the required 5 micron pretreatment with the option of a full-flow carbon filter to treat taste and odor. Installation of a UV water filtration system has never been easier with a design that allows for feedwater to enter the filters from either the right or left side of the unit.

Features

• Integral filter design with o-ring groove for fail-safe installation, higher operating pressure (120 psi), and single manifold heads (NO POTENTIAL LEAKS BETWEEN HEADS)
• LB4 models include integral LED lamp countdown timer as standard
• 316L stainless steel, axial flow reactors allow for optimum efficiency and lamp/sleeve service without the need to drain the water (10 year limited warranty on UV reactors)
• Flow rates stated at 95% UVT at a UV dose of 30 mJ/cm2
• Coated UV lamps for consistent UV output throughout life, 9,000 hour LP lamps, 10,000 hours LP-HO lamps
• Splash-proof controller with constant current electronic ballast
• Colour user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
