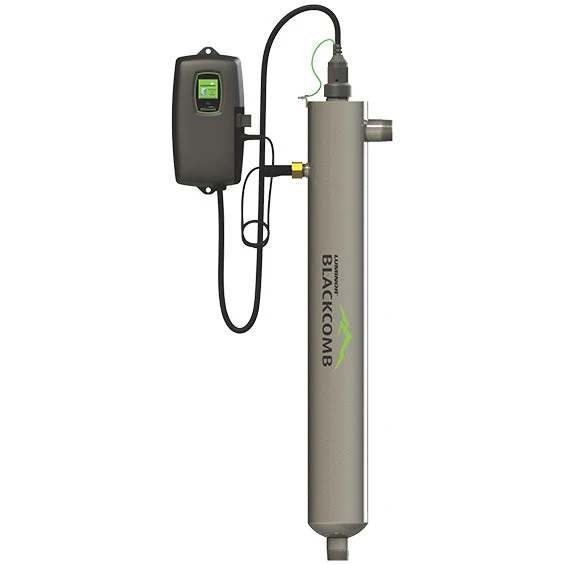

Luminor LBH6-251-50 Blackcomb-HO UVC Water Purifier – 10 GPM – 1″ MNPT Inlet/Outlet – Low UVT – IEP Port – System Diagnostics – UV Sensor(Luminor Lbh625150 Blackcombho Uvc Water Purifier 10gpm 1inmnpt Inletoutlet Low Uvt Iepport Systemdiagnostics Uvsensor)

LUMINOR low ultraviolet transmissivity (Low UVT) systems are designed to be used for applications of lower water quality (50% UVT).

For higher flow rates, consider LUMINOR’s BLACKCOMB-HO 6.1 line of “Residential Crossover” UV water treatment systems.

Installed in a large residence or in a light commercial application, continuous UV water quality monitoring is provided by the inclusion of a true 254nm discrete UV monitor. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging.

A color user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The system also incorporates QR codes to access lamp change information and videos via web access. The controller’s universal input, constant current electronic power source is housed in a splash-proof case and comes standard with a “future-proof” expandability port for future upgrades or options.

Commercial grade axial flow 316L stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Low pressure, high-output (LP-HO) coated UV lamps offer a consistent output over their 10,000 hour rated life.

Features

• NEW plastic mounting clamps (replaces gear clamp design)
• Axial flow 316L stainless steel reactors for optimum fluid dynamics yet still allows for lamp/sleeve service without the need to drain the water
• Designed and manufactured to ASME pressure vessel standards
• Low pressure high-output (LP-HO) coated UV lamps for increased power density and consistent UV output throughout the rated lamp life of 10,000 hours
• Sensor port for future upgradeability, comes with integral visual glow plug
• LED lamp countdown constant current electronic ballast (only on 4.1 series)
• Color user interface with full diagnostics and warnings including QR codes
• IEP (infinite expandability port) for future upgrades and options
• 254 nm Teflon based UV sensor with 4-20 mA output capabilities and solenoid ready capabilities (optional modules required)
